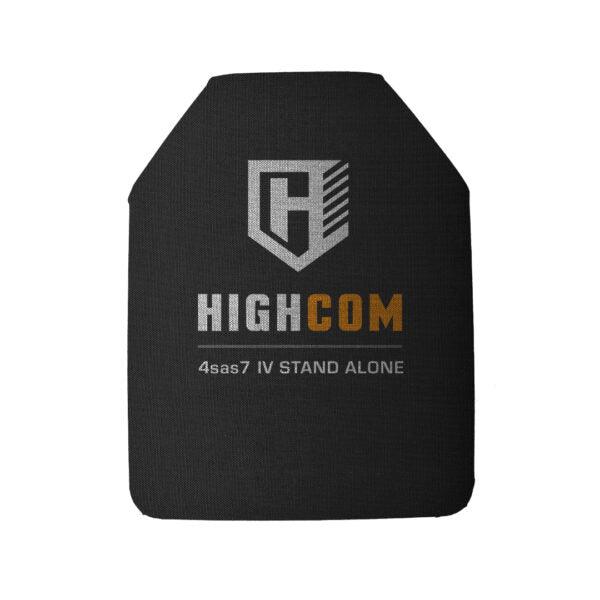

• HighCom Guardian 4sas7 Level IV body armor plate set - SAPI-M Cut

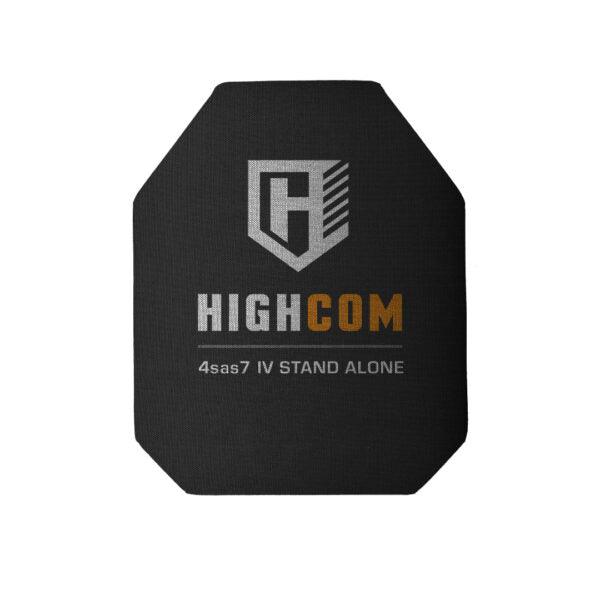

  • HighCom Guardian 4sas7 Level IV body armor plate set - Swimmer Cut

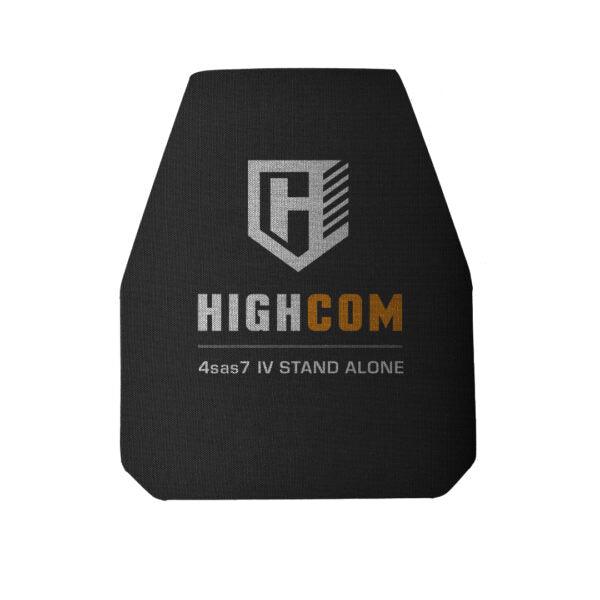

  • HighCom Guardian 4sas7 Level IV body armor plate set - Shooter Cut

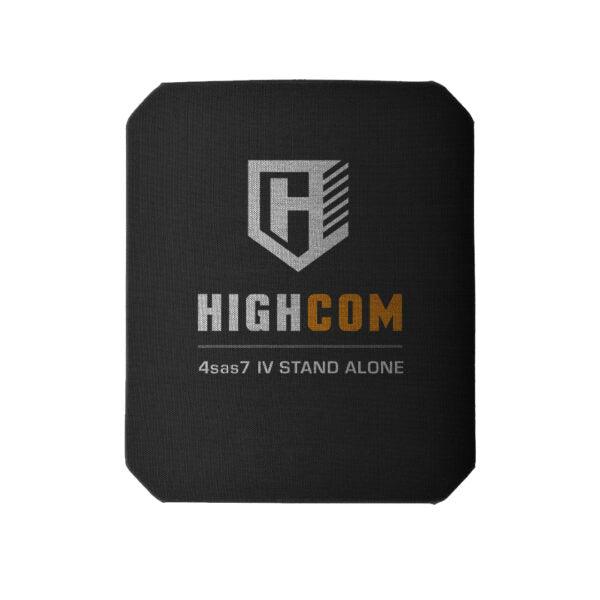

  • HighCom Guardian 4sas7 Level IV body armor plate set - Full Cut
  • HighCom Guardian 4sas7 Level IV body armor plate set - worn view

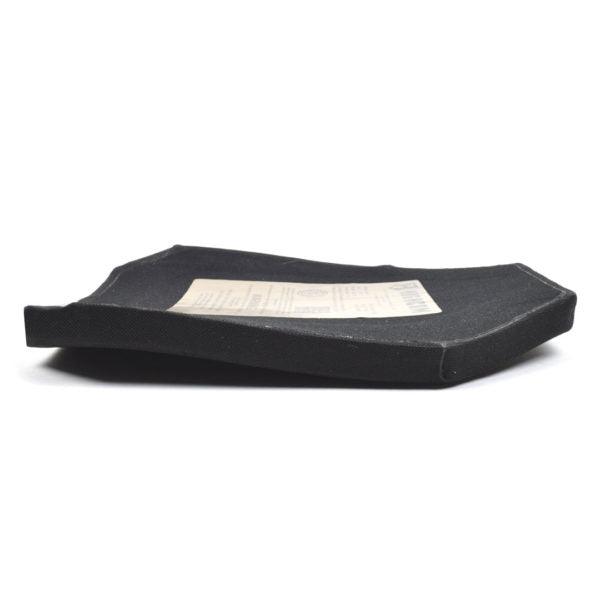

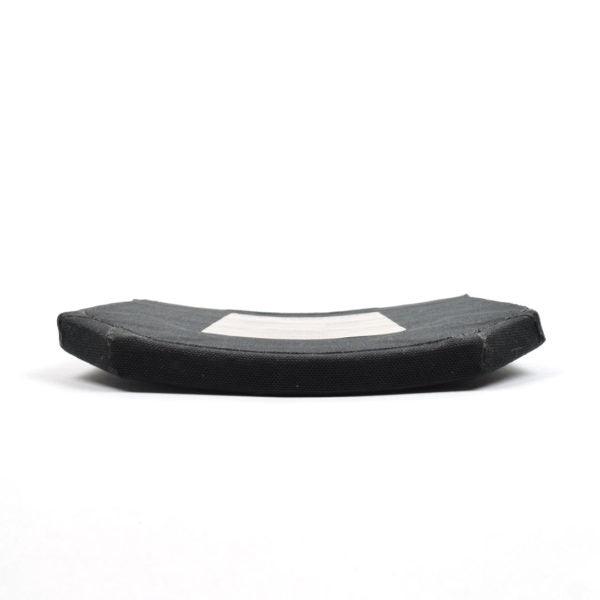

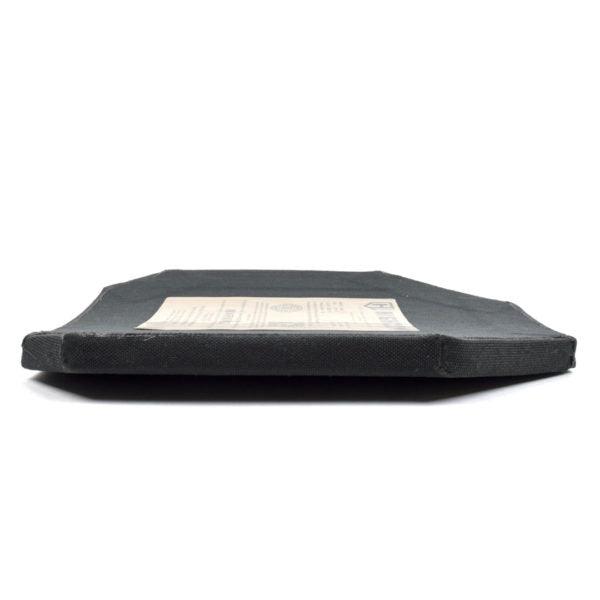

  • HighCom Guardian 4sas7 Level IV body armor plate set - side view
  • HighCom Guardian 4sas7 Level IV body armor plate set - additional view

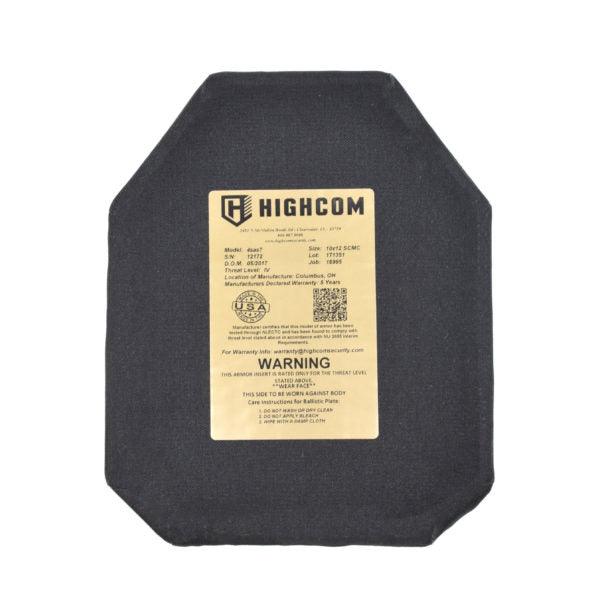

  • HighCom Guardian 4sas7 Level IV body armor plate set - back view
  • HighCom Guardian 4sas7 Level IV body armor plate set - SAPI-M Cut
1 9

HighCom Armor

Level IV Body Armor Plate Set | Guardian 4sas7 by HighCom

Level IV Body Armor Plate Set | Guardian 4sas7 by HighCom

$379.00 USD
$418.00 USD $379.00 USD
Sale Sold out
Shipping calculated at checkout.
Plate Cut
Plate Curve
Plate Size

ABOUT

The HighCom Guardian 4sas7 is a Level IV ceramic composite body armor plate rated to stop .30 caliber M2AP armor-piercing rounds — the highest standard threat level in NIJ certification. It is NIJ Standard 0101.04 certified, meaning it has been independently tested and listed on the NIJ Compliant Products List, not simply claimed to meet standard. This is the certification to look for when rifle-rated armor-piercing protection is a requirement.

The 4sas7 pairs a ceramic strike face with a polyethylene (PE) composite backing. Ceramic shatters incoming projectiles on contact while the PE backing catches the fragments, giving you the armor-piercing rating at a weight that remains practical for extended wear. The plate is available in full cut, shooter cut, SAPI-M, and swimmer cut profiles in both single and multi-curve options, covering the full range of plate carrier pocket sizes and cut preferences.

Each plate comes with a 5-year warranty on all ballistic material. Available in 8x10, 10x12, and side plate sizes. If you are selecting your first Level IV plate or replacing plates in a known carrier, the 4sas7 is a dependable NIJ-certified option at a price point that does not require compromise on certification status.


SPECIFICATION

  • Protection: Level IV Stand Alone Armor Piercing
  • NIJ Standard 0101.04 (2005 IR) CERTIFIED: This product is NIJ 0101.04 (2005 IR) compliant “Certified” by NIJ
  • DEA: Hard Armor Protocol Compliant
  • RST: Rifle Special Threats Validated
  • Material: Ceramic strike face composite backing
  • Thinness: 0.75”
  • Exterior Cover: 1000D CORDURA®, Textured Nylon
  • Cut: Available in Shooters, Swimmers, SAPI, and Full (10” x 12” shooters cut is considered nominal 9.5” x 11.5” dimensions)
  • Warranty: 5 years on all ballistic material excluding exterior cover and 1 year on exterior cover material and workmanship

BALLISTIC ROUNDS TESTED

STANDARD WEAPON PROJECTILE GR VEL FT/S VEL M/S (+/- FT/S)
NIJ 2005 IR Rifle .30 Caliber Armor Piercing (AP) Bullets (M2 AP) 166 2880 878 (+/- 30 fps)
DEA 2017 Rifle .223 Remington Tactical Bonded Soft Point 62 2600 792 (+/- 50 fps)
DEA 2017 Rifle 5.56 x 45mm M855 (Green Tip) 62 3100 945 (+/- 50 fps)
DEA 2017 Rifle 7.62 x 39mm Mild Steel Core 123 2400 731 (+/- 50 fps)
DEA 2017 Rifle 7.62 mm FMJ, Steel Jacketed Bullets (M80) 147 2750 838 (+/- 50 fps)
DEA 2017 Rifle .308 Winchester PSPB Core-Lokt Ultra Bonded 150 2600 792 (+/- 50 fps)

PRODUCT RESOURCES

HighCom Armor Guardian 4sss2 Hard Armor Plate Product Spec PDF page

Guardian 4sas7 Product Spec
Image of HighCom Armor Guardian Plates Overview PDF catalog with hard armor plate and company logo

Guardian Hard Armor Plates Overview
HighCom Armor Guardian Hard Armor Threat Chart Cover Page PDF

Guardian Hard Armor Threat Chart
